What does an assembly kit for ISO 6020/2 or ISO 6022 hydraulic cylinders include?

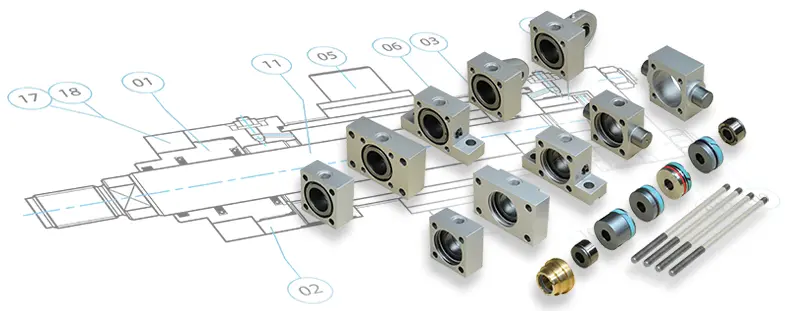

The assembly kit includes all the basic cylinder components: end caps, bronze guide bushing, piston, cushions, flanges, tie-rods with rolled threads and high-tensile screws. All components are Made in Italy, always available from stock, supplied with the required seals, ready for fast dispatch. All that remains is to machine the tube and rod to size, guided by the executive drawings provided, and assemble your ISO cylinder.

Can I build hydraulic cylinders with magnetic position sensors?

Yes. Assembly kits can also include magnetic pistons and stainless steel tube, to build ISO 6020/2 hydraulic cylinders in the MD series, equipped with magnetic position sensors to detect the piston position at specific points along the stroke.

How can I be sure to order all the components I need without missing anything?

The Prisma service can provide the complete list of all required components based on the code of the hydraulic cylinder to be built. This way you avoid errors or omissions and your order is ready with part numbers, prices and quantities, to be sent in one click.

Where do I find the drawings to machine the tube and rod for the cylinder I want to build?

The Prisma service allows you to interpret the cylinder code, customise the main dimensions according to your needs and obtain the executive drawings for machining tubes and rods, with no risk of errors.

Assembly kits and components for ISO 6020/2 and ISO 6022 hydraulic cylinders

Conforti supplies a complete range of modular components and assembly kits for building and maintaining hydraulic cylinders to ISO 6020/2 — tie-rod and counterflange versions — and heavy-duty ISO 6022. Every kit comes complete with seals, in sealed packaging with an identification label, ready for delivery from stock in all the mounting styles covered by the standards and in multiple seal configurations. Assembly is straightforward and requires no special tooling: the modular design gives machine builders and maintenance teams maximum flexibility with a minimal stock commitment. Cylinder tubes and chrome-plated bars are also available cut to size, so a custom cylinder can be assembled from standardised, easy-to-source parts. Each product family below links to its own online configurator, where you select the components and download the documentation.

DESIGN IT

Catalogue

Build your own ISO hydraulic cylinder: simple and fast

Each hydraulic cylinder is custom-made. The online CAD configurator allows you to quickly select the optimal specifications, by choosing from the wide range of options and customisations available, and to download 2D/3D models and complete technical documentation, making it easier to integrate our cylinders into the most complex projects.
The PRISMA area of our website offers a comprehensive support service to help you use our kits quickly, easily and effectively: simply enter the code of the cylinder you want to make and you will receive the list of the necessary components and the manufacturing drawings for the customised parts (barrel, rod, tie-rods). You can then proceed directly to the order, without risk of errors.

Front and rear heads and mountings in all configurations (threaded holes, flanges, feet, hinges, pins, etc.).
Pistons complete with seals, available in standard and magnetic versions for use with proximity sensors. The ISO dimensions of the grooves ensure that spare parts are easy to find.
Bronze guide bushings, which guarantee high performance and durability, complete with polyurethane, PTFE+NBR or Viton seals according to application requirements.
Adjustable cushioning systems, with hardened steel floating ring for perfect centring and quick opening during return.
High-strength steel tie-rods, threaded by rolling, available from stock in standard or custom lengths.
Chrome-plated bars (CK45, 42CrMo4, AISI 304, 20MnV6) and tubes (E355, AISI 304) cut to size for the machining of rods and tubes. In the PRISMA area, you can configure and download customised machining drawings.
